Why Battery Protection Circuit (PCB/PCM) Matters in Barcode Scanner Batteries
Introduction
When purchasing replacement batteries for barcode scanners, many buyers focus on capacity, voltage, and price.
However, one critical component is often overlooked: the battery protection circuit.
Inside a professional barcode scanner battery pack, the protection circuit plays an important role in safety, stability, and long-term performance.
A battery with the same capacity specification can perform very differently depending on the quality of its protection system.

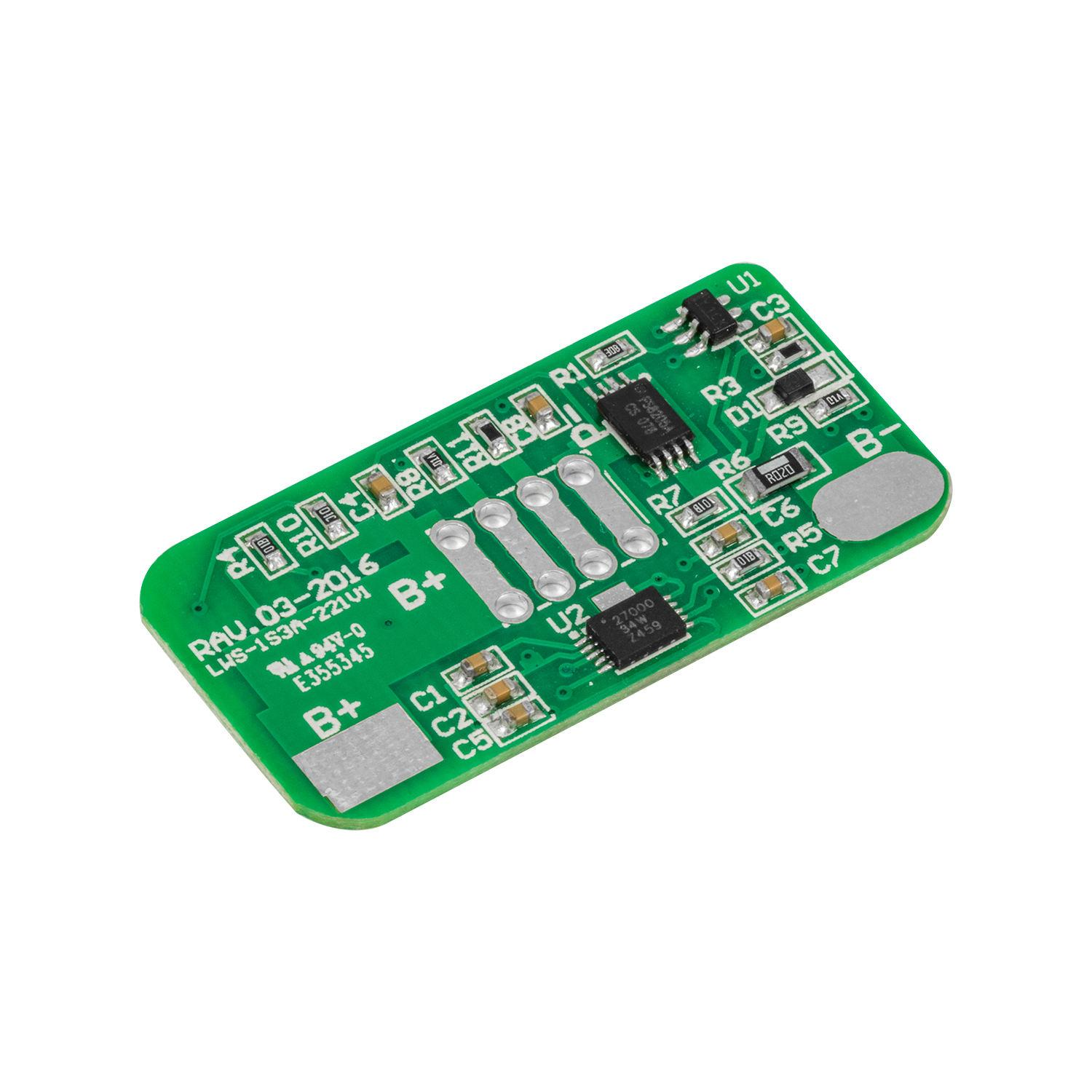

What Is a Battery Protection Circuit?
A protection circuit is an electronic control system built into a lithium battery pack.
It is commonly referred to as:
- PCB (Printed Circuit Board)
- PCM (Protection Circuit Module)
- BMS (Battery Management System, mainly used for more complex battery systems)
For barcode scanner batteries, PCB/PCM is responsible for monitoring and controlling battery operation.
Its main purpose is to protect the battery from abnormal conditions during charging and usage.
The Main Protection Functions
1. Overcharge Protection
Lithium batteries should not continue charging beyond their safe voltage range.
Without proper protection, overcharging may cause:
- Reduced battery lifespan
- Increased heat generation
- Safety risks
A reliable protection circuit automatically stops charging when the battery reaches its designed limit.
2. Over-Discharge Protection
Barcode scanners are often used for long working shifts.
If a battery is discharged below its safe voltage level repeatedly, it can suffer permanent capacity loss.
Over-discharge protection helps prevent excessive battery depletion and improves cycle performance.
3. Overcurrent Protection
During operation, unexpected current spikes may occur.
The protection circuit helps control abnormal current conditions and reduces the risk of battery damage.
This is especially important for industrial devices that operate continuously.
4. Short Circuit Protection
A short circuit can happen due to:
- Internal battery issues
- Damaged connectors
- External electrical problems
A properly designed protection circuit can quickly disconnect the power supply and improve safety.
Why PCB Quality Affects Real-World Performance
Two batteries may have identical specifications:
- Same voltage
- Same capacity
- Same physical size
But their performance can still be different.
The reason is often the internal design.
A quality protection circuit helps maintain:
- Stable voltage output
- Consistent discharge performance
- Better charging efficiency
- Longer service life
For businesses using hundreds of handheld devices, these differences directly affect maintenance costs.
Why This Matters for Barcode Scanner Applications
Barcode scanners are often used in demanding environments:
- Warehouses
- Distribution centers
- Manufacturing facilities
- Retail operations
These applications require batteries that can handle:
- Long operating hours
- Frequent charging
- Daily transportation
- Continuous scanning tasks
A battery pack is not only about storing energy.
It is a complete system that combines:
- Battery cells
- Protection circuit
- Connector design
- Structural design
- Quality control
What Professional Buyers Should Ask Battery Suppliers
Before selecting a barcode scanner battery supplier, it is important to understand the battery design.
Useful questions include:
- What type of protection circuit is used?
- How is battery safety tested?
- Are charging and discharging parameters verified?
- Is each production batch inspected?
- Can technical documents be provided?
These questions help separate professional manufacturers from simple resellers.
The Importance of Battery Manufacturing Experience
A reliable battery supplier needs experience beyond selecting cells.
Battery pack development requires knowledge of:
- Cell matching
- Circuit design
- Product structure
- Testing procedures
- Device compatibility
This is especially important for replacement batteries used in professional equipment such as barcode scanners and mobile computers.
Conclusion
The protection circuit is one of the most important components inside a barcode scanner battery, even though it is not visible to users.
A high-quality PCB/PCM design improves safety, stability, and battery reliability.
For distributors, repair companies, and device service providers, choosing batteries based only on capacity and price can create long-term risks.
A reliable battery solution requires attention to every detail — from the cell to the protection system.
